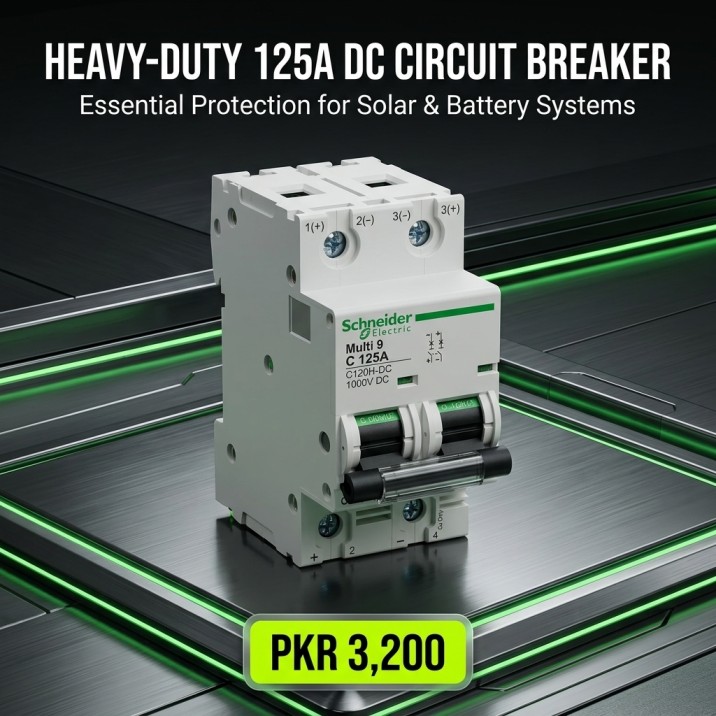

2-Pole 125A 1000V DC Battery Breaker – Heavy-Duty Solar & Battery Protection
Description & Information
The 2 Pole 125A 1000V DC MCB is designed for high-voltage DC protection and circuit isolation in solar, battery and inverter systems. It provides overload and short-circuit protection while allowing both DC poles to be disconnected when isolating the circuit.
With a high 1000V DC rating and 125A current capacity, this breaker is suitable for appropriately designed DC circuits where the protection rating matches the system, wiring and connected equipment.
Key Features
- 1000V DC Rating: Designed for suitable high-voltage solar and DC power applications.
- 125A Rated Current: Suitable for high-current DC circuits when correctly sized for the installation.
- 2-Pole Isolation: Disconnects both positive and negative DC conductors for convenient circuit isolation.
- DC Arc Suppression: Internal arc-extinguishing design helps safely interrupt DC current.
- Overload Protection: Helps protect connected wiring and equipment from excessive current.
- Short-Circuit Protection: Designed to interrupt suitable short-circuit conditions.
- Thermal-Magnetic Protection: Combines thermal and magnetic tripping for overload and short-circuit protection.
- 35mm DIN Rail Mounting: Compatible with standard DIN-rail distribution equipment.
- Flame-Retardant Housing: Suitable for installation inside compatible electrical panels and distribution boxes.
Technical Specifications
- Type: DC Miniature Circuit Breaker
- Poles: 2 Pole
- Rated Current: 125A
- Rated Voltage: 1000V DC
- Protection: Overload & Short Circuit
- Tripping: Thermal-Magnetic
- Mounting: 35mm DIN Rail
- Applications: Solar PV, Battery & DC Inverter Systems
Suitable Applications
This 1000V DC 125A MCB can be used in solar PV distribution boards, DC combiner boxes, battery banks, hybrid inverter systems and other compatible high-voltage DC installations.
Buy 125A 1000V DC MCB in Bahawalpur
Available at Punjab Solar Bahawalpur for solar, battery and electrical protection requirements.
