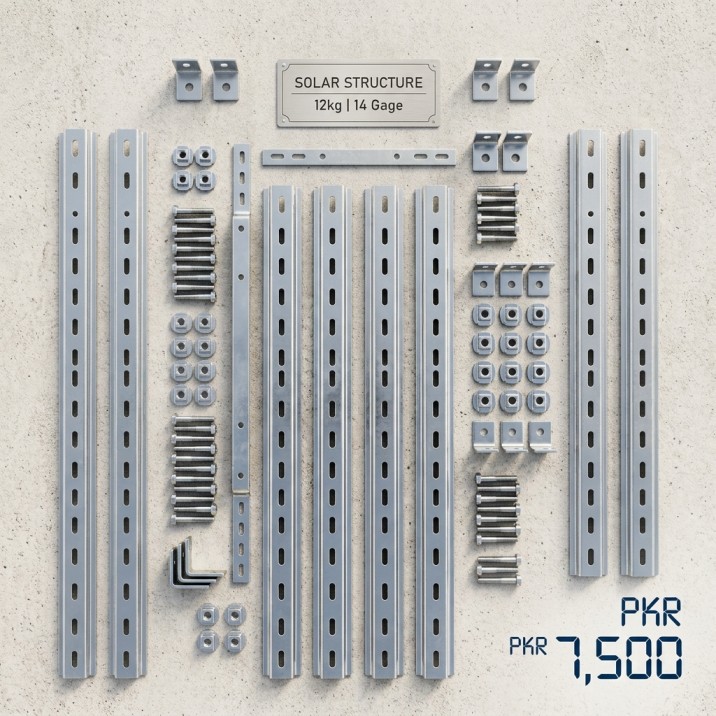

Heavy-Duty GI Solar Mounting Structure 12kg 14-Gauge for Solar Panels
Description & Information
The Heavy-Duty GI Solar Mounting Structure 12kg, 14-Gauge is designed to provide a strong and dependable foundation for solar panel installation. Made from high-strength Galvanized Iron (GI) sheet material, this mounting structure is built to support modern high-wattage solar modules while providing stability against outdoor environmental conditions.
With a structural weight of approximately 12kg and a 14-gauge GI construction, the frame offers a solid combination of strength and durability. The galvanized surface helps protect the metal against rust and moisture, making it suitable for long-term outdoor solar applications when properly installed and maintained.
The structure is designed with a suitable panel mounting angle to help position solar modules effectively toward available sunlight. Proper tilt and orientation can play an important role in maintaining consistent solar generation throughout the year.
Its mounting arrangement is suitable for standard high-power solar panels, including modules in the 550W to 700W+ range, subject to the exact panel dimensions and mounting-hole configuration. The structure can be used for rooftop, elevated-frame and suitable ground-mounted solar installations.
Key Features
Heavy-Duty 12kg Construction
The approximately 12kg structural weight provides a substantial mounting base for solar panels. A stronger frame can help maintain panel stability when properly anchored to the installation surface and correctly assembled.
The overall performance of the structure depends not only on its weight but also on the quality of the material, fastening method, support spacing and installation surface.
14-Gauge GI Sheet Construction
The frame is manufactured using 14-gauge galvanized iron sheet, providing a sturdy structure designed for repeated outdoor exposure. The thicker sheet construction gives the mounting frame a robust feel and makes it suitable for supporting high-wattage solar modules when correctly engineered for the installation.
Galvanized Surface for Corrosion Protection
The GI construction provides protection against common outdoor conditions such as moisture and humidity. The galvanized coating helps reduce the risk of corrosion and surface rust compared with untreated steel.
For installations exposed to particularly harsh environments, proper inspection of joints, fasteners and any cut or damaged areas is still recommended to maintain long-term structural condition.
Optimized Solar Panel Tilt
The structure provides a predefined mounting angle intended to position solar panels effectively toward the sun. Correct tilt and orientation can help improve the amount of sunlight received by the module during daily operation.
The ideal angle can vary depending on the installation location, roof design, seasonal requirements and system configuration.
Compatible with High-Wattage Panels
The mounting structure is designed for commonly used high-output solar modules, including panels in the 550W–700W+ range.
Because panel dimensions and mounting-hole positions can vary between manufacturers, compatibility should be checked against the exact solar panel before installation.
Easy Assembly
The structure is designed to simplify the mounting process through practical fixing points and mounting slots. It can be used for suitable:
- Flat rooftop installations
- Elevated solar frames
- Commercial rooftop systems
- Ground-mounted arrangements
- Residential solar projects
- Small and medium solar installations
Professional installation is recommended to ensure proper alignment, anchoring and structural stability.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Solar Panel Mounting Structure |
| Material | Galvanized Iron (GI) |
| Sheet Gauge | 14-Gauge |
| Approx. Structural Weight | 12kg |
| Surface Protection | Galvanized coating |
| Panel Compatibility | Approx. 550W–700W+ modules |
| Installation Type | Rooftop, elevated frame and suitable ground mount |
| Main Purpose | Solar panel support and mounting |
| Design | Heavy-duty structural frame |
Weather & Outdoor Performance
Solar mounting structures remain exposed to sunlight, rain, wind, humidity and changing temperatures throughout their service life. The galvanized GI construction of this structure is intended to provide better resistance to these outdoor conditions than untreated metal.
A properly secured frame is particularly important in areas that experience strong winds. Wind resistance is influenced by several factors, including mounting design, anchor points, roof condition, panel size, structure spacing and local wind conditions.
For this reason, the structure should always be installed with appropriate anchoring and fastening based on the actual installation site rather than relying only on the structural weight.
Suitable Solar Panel Applications
This GI solar mounting structure can be used with many modern high-wattage photovoltaic modules. It is particularly suitable for installations using larger panels where a stable and properly aligned support structure is required.
Potential applications include:
- Residential solar systems
- Commercial solar projects
- Office and shop installations
- Agricultural solar systems
- Rooftop solar installations
- Elevated solar panel frames
- Small ground-mounted systems
- High-wattage 550W–700W+ solar panels
The exact structure size, support spacing and fixing arrangement should be selected according to the dimensions and weight of the solar module being installed.
Why Choose a GI Solar Mounting Structure?
The mounting structure is one of the important physical components of a solar power system. Even high-efficiency solar panels require a properly positioned and securely supported frame to operate reliably.
This 14-gauge GI structure combines a heavy-duty construction with galvanized surface protection, making it a practical option for solar installations where durability and stable panel positioning are important.
Its compatibility with commonly used high-wattage panels also makes it useful for modern solar systems. When professionally installed, the structure can provide a stable platform while maintaining the required panel orientation and tilt.
Installation Recommendations
For reliable long-term performance, the mounting structure should be installed by an experienced solar technician or structural installer.
Before installation, the installer should check:
- Roof or ground surface condition
- Panel dimensions and mounting points
- Structure alignment
- Required tilt angle
- Anchor and fastener strength
- Wind exposure at the site
- Clearance between panels and mounting surface
- Drainage and water accumulation around fixing points
All bolts, anchors and supporting components should be properly tightened and inspected after installation.
Buy GI Solar Mounting Structure in Bahawalpur
Looking for a heavy-duty GI solar mounting structure in Bahawalpur for your solar panels? Punjab Solar Bahawalpur provides solar mounting solutions along with solar panels, inverters, batteries and complete installation services.
Punjab Solar Bahawalpur
Shop No. 10, Cantonment Market, Near SS World, Bahawalpur.
Call / WhatsApp: 0347-0160003
Our team can help you select a suitable mounting structure according to your solar panel size, installation location and system requirements.
